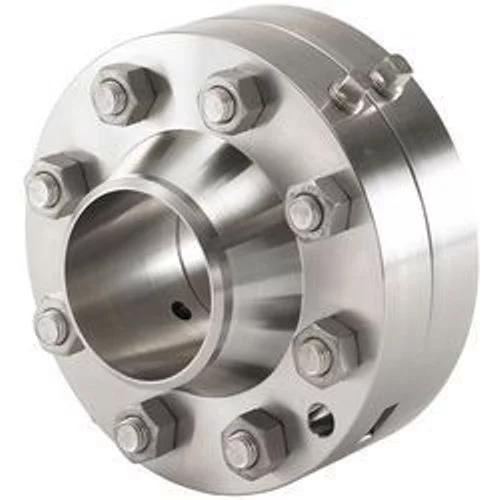

Orifice Flanges Manufacturers, Suppliers
Metline is a professional manufacturer and exporter of orifice flanges with precision machining facilities. We produce orifice flanges as per ANSI B16.5, DIN Standard and EN1092-1 in size range of 1/2” to 60” NPS. Orifice plates are one of the most popular devices for the measurement and control of fluid flow. The shape and manufacturing tolerances of plates used in measurement applications are defined in the international standardization publications of ISO, AGA, ASME and others. From the formulas and data within these publications, the relationships and values of flow, differential pressure and plate bore are determined. We produce flanges in carbon steel, stainless steel, high nickel alloys, duplex/super duplex, copper nickel, titanium and special alloys.
- Orifice Flanges Available for Sale in Sizes 1/2″ to 60″ (DN15~DN1500)
- Pressure Rating: 150, 300, 400, 600, 900, 1500, 2500 Class
- Flanges Manufactured in Various Standards & Specifications including ANSI / ASME Flanges, BS Flanges, DIN Flanges, EN 1092-1 Flange, JIS Flange
- Certification as per EN 10204 3.1
- Types of Flanges: Weld Neck Flange, Threaded / Screwed Flange, Slip on Flange, Socket Weld Flange, Orifice Flange, Lap Joint Flange, Blind Flange
|Class||150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS DIN Standard ND-6,10, 16, 25, 40 etc.|
|Certificate||EN 10204 3.1|
|Size||1/2″ to 60″ mm|
|Packing||Bundled Packing, Loose|
|Form||Stainless Steel Orifice Flanges, Carbon Steel Orifice Flanges, Mild Steel Orifice Flanges|
|Applications||Power Generation, Petrochemicals, Chemical Equipment, Sea Water Equipment, Off-Shore Oil Drilling Companies, Pulp and Paper Industry|
What is a Orifice Flange?
Orifice flanges are generally made from forged carbon, alloy and stainless steel bar stock. The raw materials used for manufacturing orifice flanges include raw round bar of diameter size 20~400mm OD or billets for large size flanges. Orifice flanges are used with orifice meters for the purpose of measuring the flow rate of either liquids or gases in the respective pipeline. They are, for all intents and purposes, the same as weld neck and slip-on flanges with extra machining.
ASME B16.36 flanges are orifice flanges and they are used for measuring the flow of fluid that has been transported through a pipeline, via a flow nozzle, that has been kept on the flange. Orifice flanges of ASME B16.36 can be obtained from Class #300 – Class #2500. Orifice Class #300 flanges are procurable in types such as weld neck end, slip-on and threaded. Orifice Class #600 and flanges above that Class can be obtained in only weld neck type end. Orifice flanges of ASME B16.36 are produced in various grades and sizes.
Inspection & Testing of Orifice Flanges
- Mechanical Testing Such as Tensile of Area, Hardness Test, Positive Material Identification – PMI Testing, Flattening Test, Micro and Macro Test, Pitting Resistance Test, Flaring Test, Intergranular Corrosion (IGC) Test.
Metline is a large producer of various type of flanges such as Weld-neck, Slip-on, Socket-weld, Lap-joint, Orifice, Blind and Threaded Types. We produce and forge orifice flanges to specifications of ASME B16.5, ASME B16.47, ASME B16.48, BS EN 1092, BS 4504, API-605, API-590, MSSSP44, DIN 2632 to 2638, DIN 2576, 2642, 2527, 2566. At Metline, orifice flanges cover a full range of pressure ratings of these specifications (150 – 2500 psi for ASME & PN6-PN400 for DIN/EN flanges). We also specialize in producing non-standard orifice flanges upto a diameter of 4500 mm.
|Monel :||Grade: Monel 400, Monel K500, Monel R-405|
|Nickel :||Grade: Nickel 200, Nickel 201|
|Inconel :||Grade: Inconel 600, Inconel 601, Inconel 625, Inconel 718|
|Incoloy :||Grade: Incoloy 800, Inconel 800H, 800HT|
|Hastalloy :||Grade: Hastalloy B2, Hastalloy B3, Hastalloy C22, Hastalloy C276, Hastalloy X|
|Titanium :||Grade: Gr1, Gr2, Gr3, Gr5, Gr7, Gr11|
|Stainless Steel :||Grade: ASTM A182 F202, F304/304L/304H, F316/316L, F316H, F316TI, F310, F321, F904L|
|Carbon Steel :||Grade: ASTM A105/A105N, A350 LF1, LF2 CL1/CL2, LF3 CL1/CL2, A694 F42, F46, F48, F50, F52, F56, F60, F65, F70, A516.60, 65, 70 (Spectacle Blind Flange, Spacer Ring/Spade Flange), Steel RST37.2, C22.8|
|Duplex Steel:||Grade: ASTM / ASME A/SA 182 UNS F44, F45, F51, F53, F55, F60, F61|
|Alloy Steel:||Grade : ASTM A182 F1, F5, F9, F11, F22, F91|
A flange is a method of connecting pipes, valves, pumps and other equipment to form a piping system. It also provides easy access for cleaning, inspection or modification. Flanges are usually welded or screwed. Flange joints are made by bolting together two flanges with a gasket between them to provide a seal. Flanges are commonly used to connect valves into pipework making it easier for removal and maintenance. There are many common flange standards and flanges within the same standard can either be flat (commonly cast iron, ductile iron) or raised face (commonly cast steel and stainless steel).
Metline Industries is one of the prominent supplier, manufacturer and exporter of orifice flanges in India. Our manufacturing process for flanges includes an adequate heat treatment and the examination of chemical and mechanical properties. We have CNC machines as well as conventional lathe machines for machining and processing various types of flanges. Orifice Flange helps to measure the flow of liquids and gases using orifice meters located on the outside diameter of the flanges. The main purpose of the orifice flange identifies the flow rate of either liquid or gas in the pipeline system. It comes with either raised faces or RTJ facings. Each orifice flange come in contact with two pipes taps for measuring the pressure drop of the flow through an orifice plate.
Production Supply & Manufacturing Range for Orifice Flanges
|Standard:||ASTM A182, ASTM A240, ANSI/ASME B16.5, B16.47, B16.48|
|Certificate:||EN 10204 3.1|
|Size:||1/2″ to 60″, DN 15 to DN 1500|
|Surface Treatment:||Anti-Rust Oil, Painting ( Black, Yellow), Galvanizing, Power Coating|
|Testing Material :||Mechanical Testing Such as Tensile of Area, Hardness Test, Positive Material Identification – PMI Testing, Flattening Test, Micro and Macro Test, Pitting Resistance Test, Flaring Test, Intergranular Corrosion (IGC) Test|
|Package:||Plywood Pallet, Wooden Pallet, Wooden Case etc.|
|Usage:||Used for the connection of all kinds of piping systems to convey the water, steam, air, gas and oil|
|Pressure:||ANSI : Class 150, 300, 600, 900, 1500, 2500 lbs|
|DIN : PN6, PN10, PN16, PN25, PN40|
|GOST : PN6, PN10, PN16, PN25, PN40, PN63, PN100|
|EN1092-1 : PN6, PN10, PN16, PN25, PN40, PN63, PN100|
|JIS : 5K, 10K, 16K, 20K, 30K, 40K|
|BS4506 : PN6, PN10, PN16, PN25, PN40|
Why Choose Metline as Your Source for Orifice Flanges
- More than 30 years of experience in purchase and sale of orifice flanges in India and worldwide.
- We can give you materials from either stock or mill deliveries with shortest manufacturing time.
- We believe in making new customers everyday, and always help you with best prices and quality, along with complete trace-ability of materials.
- We have annual sales volume of over 5000 tons of various steel products and have tie ups with many mills across the globe.
- We can offer Exworks, FOB, CFR, CIF, Door to Door Delivery prices. We suggest that you let us do the shipping, because it will be cost effective as well as efficient
Documents – Provided for all Our Supplied of Orifice Flange & Other Products
- Certificate of Origin legalized/attested by Chamber of Commerce or Embassy
- Commercial Invoice including HS Code
- Packing List including number of boxes, net weight and gross weight, Marks and Numbers
- Fumigation Certificates
- Letter of Guarantee
- Material Test Certificates as per EN 10204 3.1, EN 10204 3.2
- Raw Material Test Reports
- Heat Treatment Charts
- Quality Assurance Plan (QAP)
- NABL approved Laboratory Test Reports
Testings (Destructive, Non Destructive) for Various Products
- Positive Material Identification – PMI Testing
- Chemical Analysis – Spectro Analysis
- Mechanical Testing Such as Tensile, Elongation, Reduction of Area
- Micro Test
- Macro Test
- Hardness Test
- Pitting Resistance Test
- Intergranular Corrosion (IGC) Test
- Flaring Test
- Flattening Test
- Hydrostatic Test
- Hydrogen-Induced Cracking (HIC) Test, NACE TM0284
- Sulfide Stress Corrosion Cracking (SSC), NACE TM 0177
- Radiography Test
- Dye Penetrant Test (DP Test)
- Ultra Sonic Test (UT)
- Eddy Current Testing
- Impact Test
- Bend Test
Packing of Materials – Domestic & International Shipments of Steel Products
- We understand the importance of packaging specially in case of international shipments as the consignment has to go through a number of channels to reach the final destination, thus we take proper care of packing.
- We pack our goods in a various ways depending on the products. The different ways in which our products are packed are:
- Wooden Boxes
- Wooden Pallets
- Wooden Crates
- Carton boxes
Marking of Steel Products
- All our products will have complete marking details which are co-related to the test certificates we supply.
- In case of orders for cut piece of Pipes, Sheets or Round Bars, the marking is transferred from the product from which it is cut. In such cases we provide Letter confirming the marking transfer and picture of the product from which it is cut.
- If the items are available in stock, we take 2 days from the date of receipt of advance payment to clear the shipment and send it to port.
- And in-case the items are not available in stock, the time taken for manufacturing depends on the size, quantity and grade.
- However we can claim the fact that we can compete with anyone in India on Delivery time and most of the time our production time is the least.
- We have tied up with strong logistic partners in India which can undertake any type of shipping activities and make sure that there is no delay in shipment.
Price Basis – We can offer any of the following price basis depending on your requirement
- FOB Nhava Sheva
- CFR, CIF, CPT your destination port
- Door to Door Delivery Duty Paid as well as Duty Unpaid
Inspection of Orifice Flanges and Other Steel Products
- We welcome stage wise inspection, final stage inspection from any of your representative or third party inspection agencies.
- We regularly have inspections ongoing at our premises from internationally acclaimed Inspection Agencies such as TUV, Llyods, BVIS, SGS, DNV etc.
We Export Orifice Flanges Across the Globe!
